RSAD-12 Eco-friendly RMU-Rolink Digital Energy（Xi'an）Limited

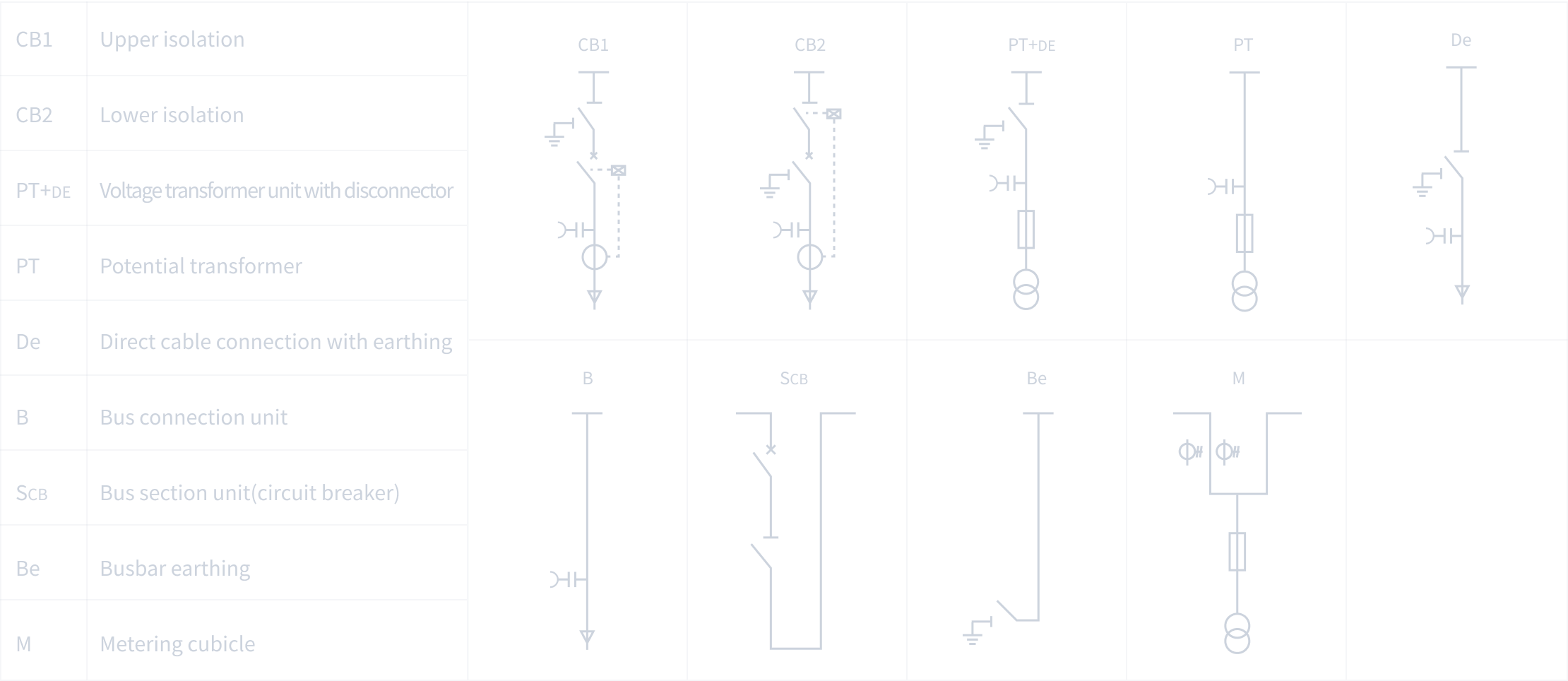

Ratings & Specifications Operating Environment Product Solutions External Dimensions

Parameter	V-module
Rated voltage	12 kV
Power frequency withstand voltage	42/48 kV
Impulse withstand voltage	75/85 kV
Rated current	630 A
Rated short circuit breaking current	20 kA
Rated short circuit making current	50 kA
Rated short time withstand current	20/4 kA/s
Mechanical life	Circuit breaker 10000 times / Isolating 5000 times / earthing 5000 times

RSAD-12 dry air insulated switchgear shall comply with IEC62271-100, IEC62271-102, IEC62271-103, IEC62271-200, IEC62271-1, GB/T11022-1999, GB3906-2006, GB1985-2004, GB1984-2003, GB3309-89 and other standards.

Item Parameter

RSAD-12 Eco-friendly Gas Insulated Ring Main UnitGenerally operate / service under normal indoor conditions, complying with IEC 60694

Ambient temperatureMaximum temperature +75℃；
Maximum temperature (24h average) +35℃；
Minimum temperature -45℃；

HumidityMaximum average relative humidity(24 hours measure≤ 95%; monthly measure ≤ 90%)

IACAFLR 20kA 1s

Service continuity categoryLSC2A

Cable bushing standardGB/T12706.4、IEC60502、NF-EN-50181

Altitude≤ 2000 m (under standard inflation pressure)

Gas pressureLower than 20 ℃, 1.2bar (absolute pressure)

Annual leakage rate0.25‰ / year

Immersion test0.3bar pressure underwater 24h

Protection degreeTank IP67
Enclosure IP4X
