SOE
The device is of SOE function.
Wireless temperature measurement device
Recorded event Convenient installation High stability
Product Overview
Wireless temperature measurement device usually works with Rolink’s intelligent cloud platform. They can remotely monitor and record the data of high-voltage equipment real-time operating temperature. This helps to provide cumulative data for the maintenance of high-voltage equipment and realize the maintenance of high-voltage equipment thermal fault prediction.
The device fundamentally solves the general problems of temperature measurement products. Without this device, it’s impossible for temperature measurement products to be used in high-voltage electrical equipment due to the inability to meet the requirements of anti-electromagnetic noise, high-voltage insulation, space constraints and so on.
Main Function Features
In-place Display

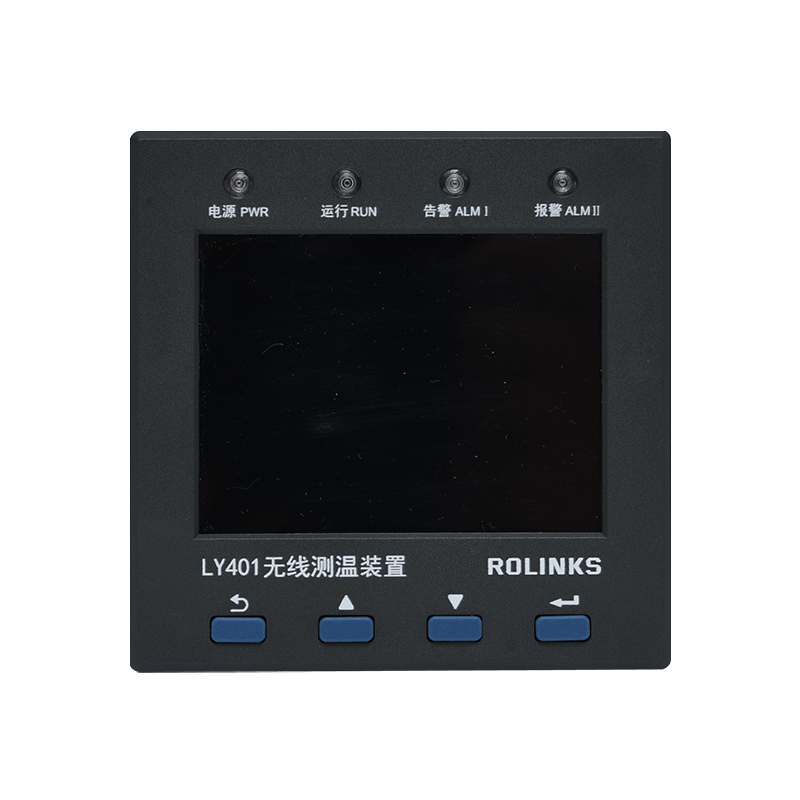

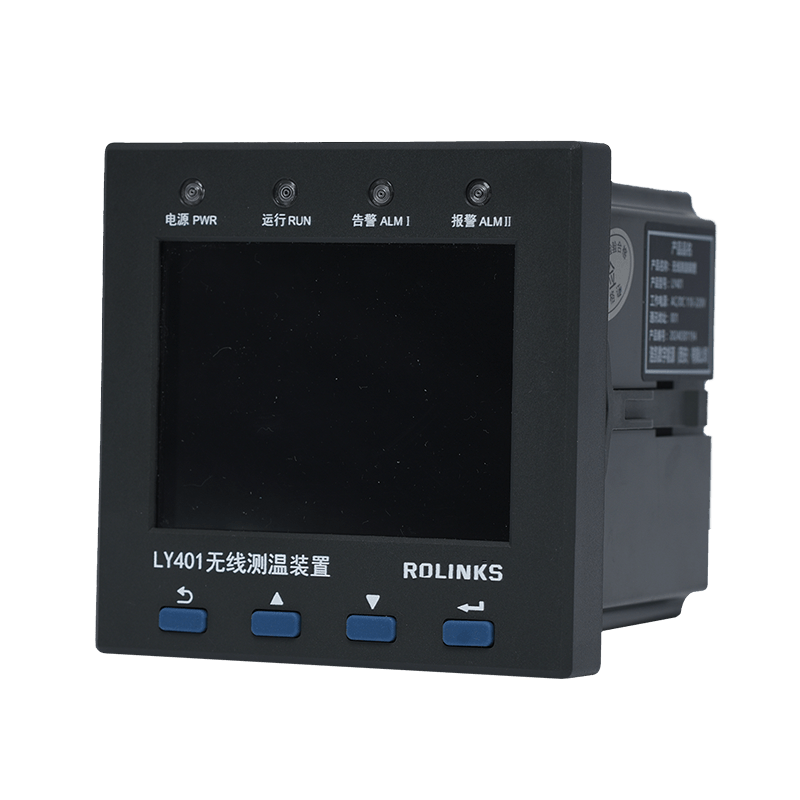

Wireless temperature measurement device host adopts panel mounting and LCD display. The sensor address can be set in place.
Real-time monitoring
The device can realize real-time monitoring of the current temperature at the measured point.
Communication
The device has RS485 communication interface and adopts standard Modbus-RTU protocol.
Easy Installation

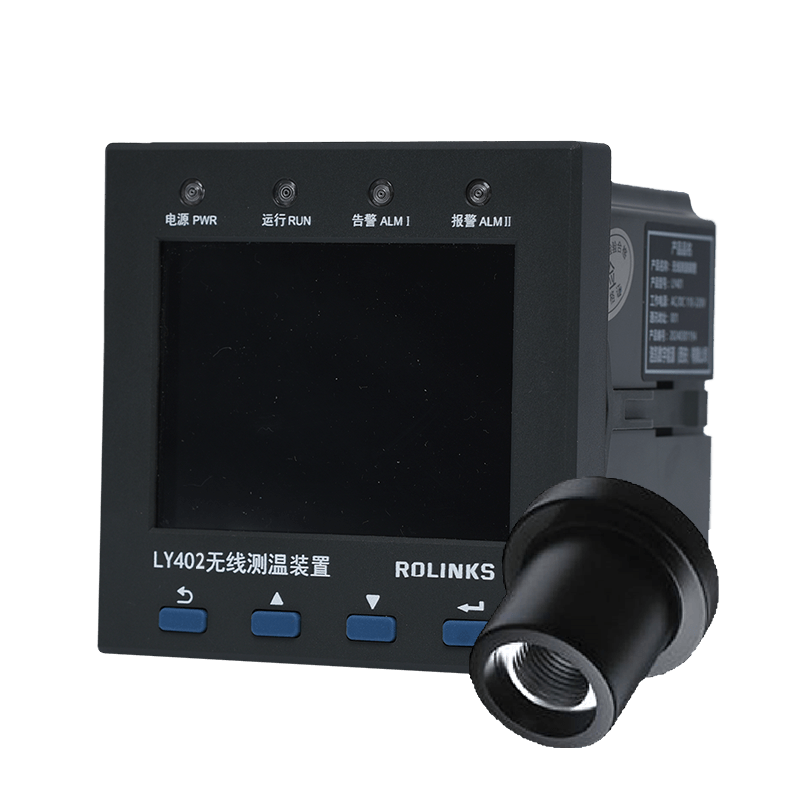

Wireless temperature sensors can be mounted directly on each high-voltage switch busbar connector, outdoor breakers or transformers.
High Stability
The device is of anti-interference and dust proof.
Item Parameter
Item Parameter
Rated voltage
AC85～265V/DC110～370V
Machine power consumption
≤5VA
Ambient temperature
-10~+70℃
Ambient humidity
≤90%RH
Insulation resistance
≥100MΩ
Altitude
≤2500m
Protection level
IP20

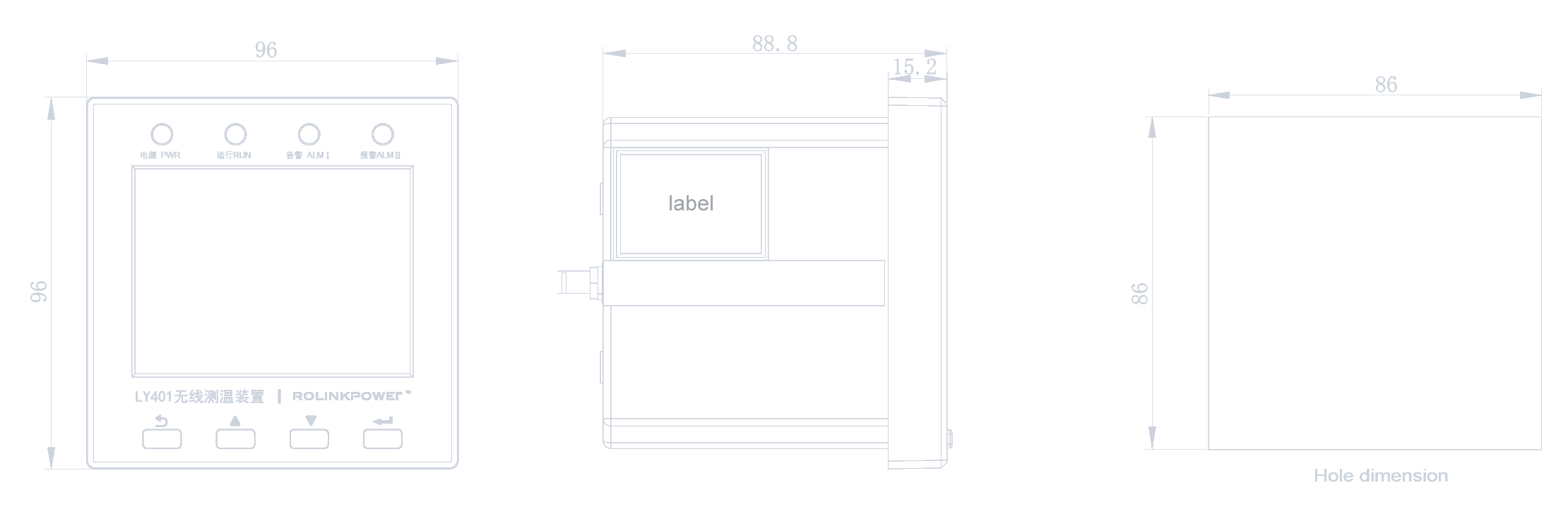

Installation mode
Embedded panel installation
