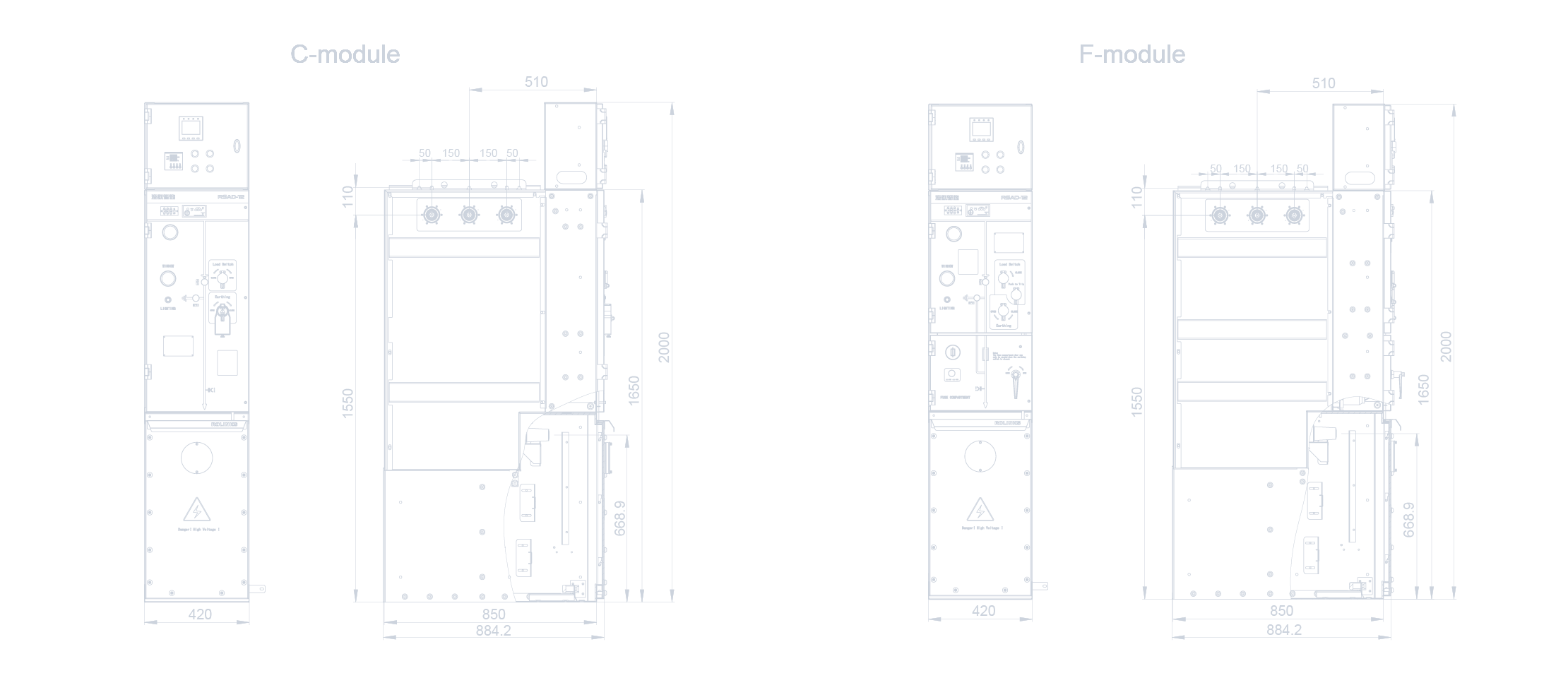

Ratings & Specifications Operating Environment Product Solutions External Dimensions

Parameter	C-module		F-module
Rated voltage	12 kV	24 kV	12 kV	24 kV
Power frequency withstand voltage	42/48 kV	65/79 kV	42/48 kV	65/79 kV
Impulse withstand voltage	75/85 kV	125/145 kV	75/85 kV	125/145 kV
Rated current	630 A	630 A	125 A	125 A
Rated short circuit breaking current			31.5 kA	31.5 kA
Rated short circuit making current	50/63 kA	50 kA	80 kA	80 kA
Rated short time withstand current	20/4 (25/4) kA/s	20/4 kA/s
Rated transfer current			1500(1700 Note[1])	1200
Mechanical life	Load 5000 times / earthing 5000 times		Load 5000 times / earthing 5000 times

Note: 1) Please consult our company for special parameters.

Middle & West Europe shall comply with GB/T11022-2020，GB3906-2020，GB1985-2023，GB1984-2024，IEC62271-1，IEC62271-102，IEC62271-200，IEC62271-100，IEC 60255等标准。

Item Parameter

Middle & West EuropeGenerally operate / service under normal indoor conditions, complying with IEC 60694

Ambient temperatureMaximum temperature +75℃；
Maximum temperature (24h average) +35℃；
Minimum temperature -45℃；

HumidityMaximum average relative humidity(24 hours measure≤ 95%; monthly measure ≤ 90%)

IACAFLR 20kA 1s

Service continuity categoryLSC2A

Cable bushing standardDIN47636T1 and T2/EDF HN 525-61

Altitude≤ 2000 m (under standard inflation pressure)

SF6 gas pressureLower than 20 ℃, 1.4bar (absolute pressure)

Annual leakage rate0.25‰/year

Immersion test0.3bar pressure underwater 24h

Protection degreeAir chamber IP67
Fuse cartridge IP67
Enclosure IP4X
