Voltage class	Load capacity	CT ratio	Fuse rated current
11 kV	200 kVA	50 / 5	3A
11 kV	300 kVA	50 / 5	5A
11 kV	315 kVA	50 / 5	5A
11 kV	500 kVA	50 / 5	10A
11 kV	750 kVA	100 / 5	7.5A
11 kV	800 kVA	100 / 5	7.5A
11 kV	1000 kVA	100 / 5	10A

Voltage class

Load capacity

CT ratio

Fuse rated current

11 kV

200 kVA

50 / 5

11 kV

300 kVA

50 / 5

11 kV

315 kVA

50 / 5

11 kV

500 kVA

50 / 5

10A

11 kV

750 kVA

100 / 5

7.5A

11 kV

800 kVA

100 / 5

7.5A

11 kV

1000 kVA

100 / 5

10A

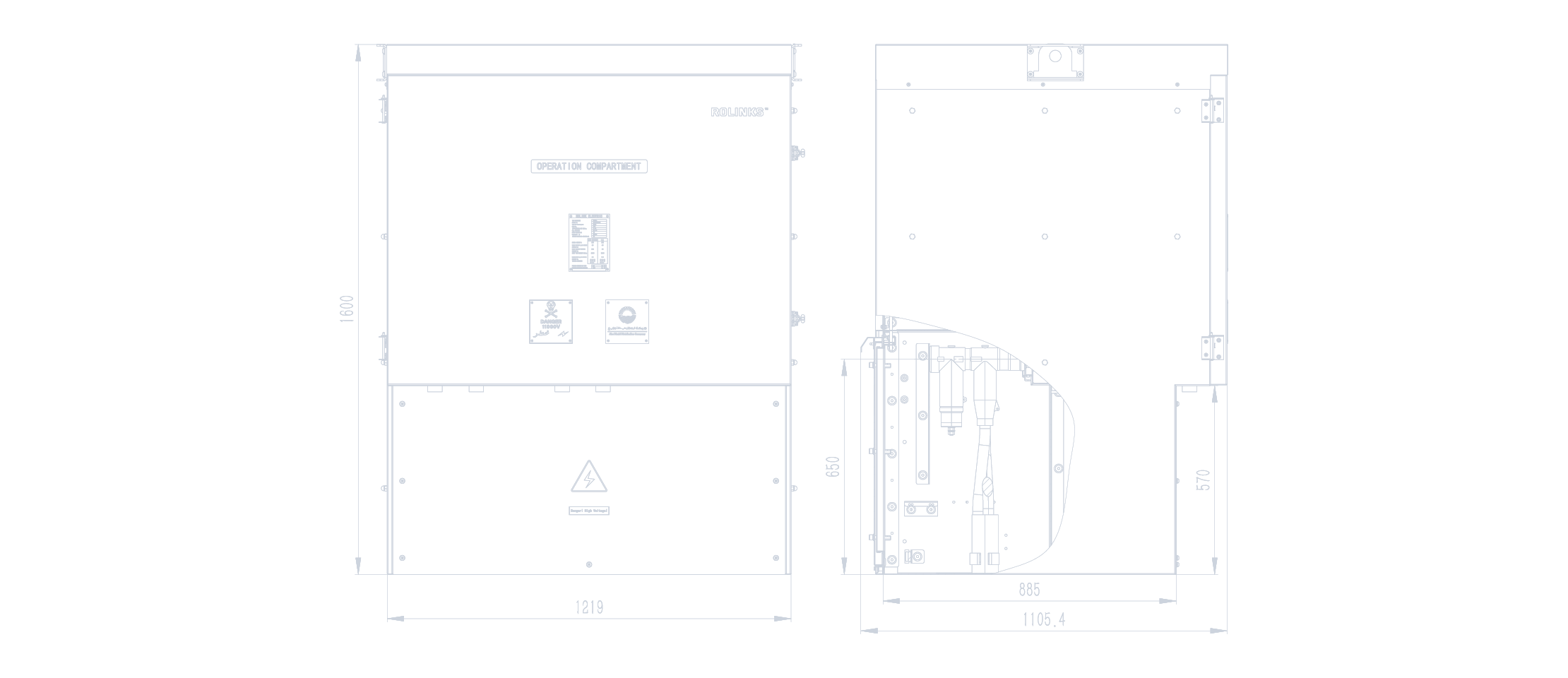

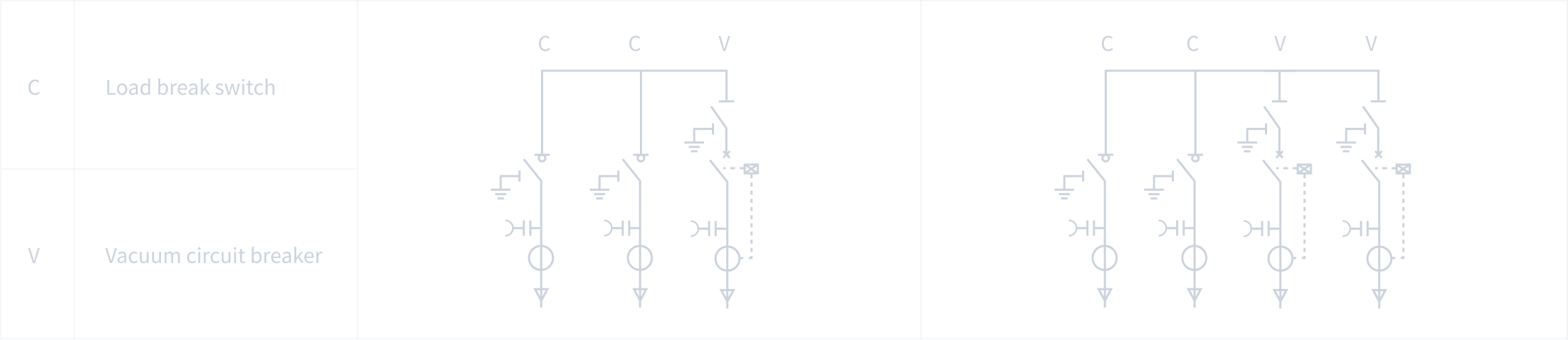

Ratings & Specifications Operating Environment Product Solutions External Dimensions

Parameter	V-module	C-module
Rated voltage	12 kV	12 kV
Power frequency withstand voltage	42/48 kV	42/48 kV
Impulse withstand voltage	75/85 kV	75/85 kV
Rated current	630 A	630 A
Rated short circuit breaking current	20/25 kA
Rated short circuit making current	50/63 kA	50/63 kA
Rated short time withstand current	20/4 (25/4) kA/s	20/4 (25/4) kA/s
Mechanical life	Circuit breaker 10000 times / Isolating 5000 times / earthing 5000 times	Load 5000 times / earthing 5000 times

RMU for southeast Asia shall comply with GB/T11022-2020，GB3906-2020，GB1985-2023，GB16926-2009，GB3804-2017，GB1984-2024，IEC62271-1，IEC 60265-1，IEC62271-102，IEC62271-200，EC62271-100，EC62271-105，IEC 60255等标准。

Item Parameter

RMU for southeast AsiaGenerally operate / service under normal indoor conditions, complying with IEC 60694

Ambient temperatureMaximum temperature +75℃；
Maximum temperature (24h average) +35℃；
Minimum temperature -45℃；

HumidityMaximum average relative humidity(24 hours measure≤ 95%; monthly measure ≤ 90%)

IACAFLR 20kA 1s

Service continuity categoryLSC2A

Cable bushing standardDIN47636T1 and T2/EDF HN 525-61

Altitude≤ 2000 m (under standard inflation pressure)

SF6 gas pressureLower than 20 ℃, 1.4bar (absolute pressure)

Annual leakage rate0.25‰/year

Immersion test0.3bar pressure underwater 24h

Protection degreeSF6 air chamber IP67
Enclosure IP4X
